Core Advantages
High-Precision Aerial Imaging System
- ✔

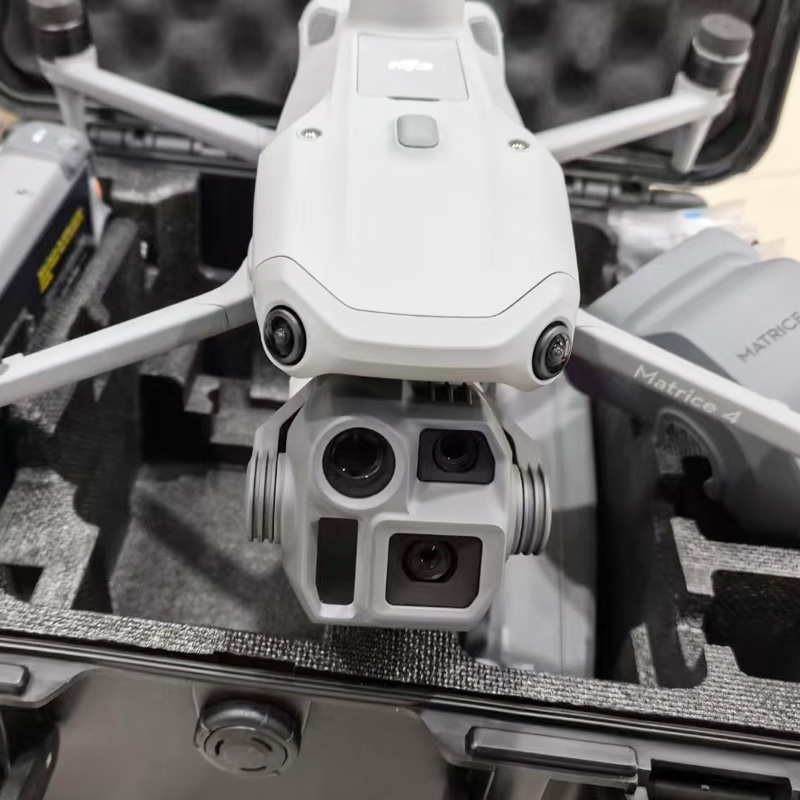

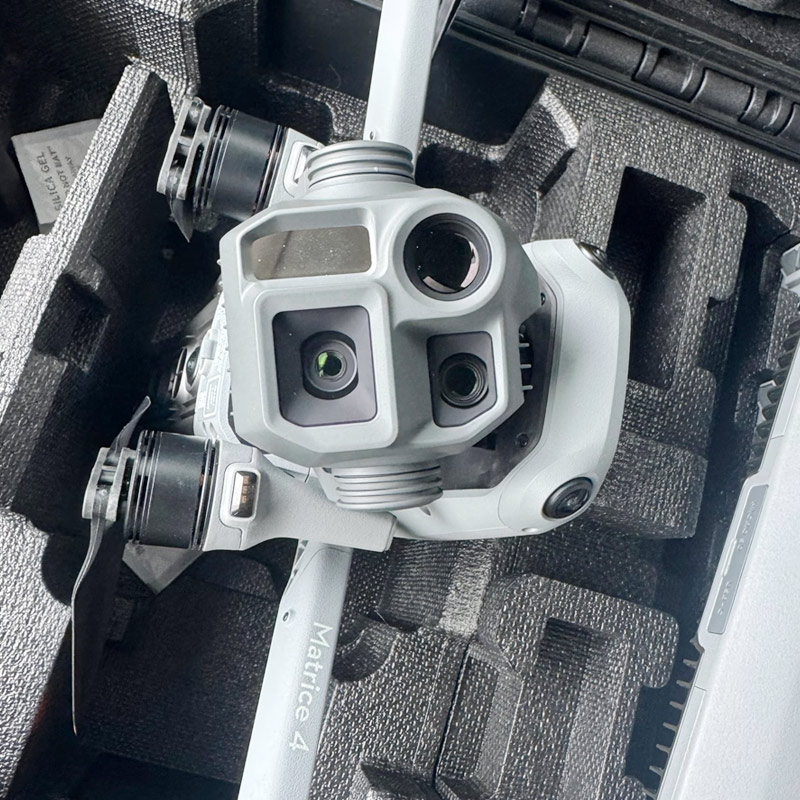

Triple-Camera System: 20MP wide-angle (24mm, 4/3 CMOS, mechanical shutter), 48MP medium telephoto (70mm), 48MP telephoto (168mm). Supports 7x optical zoom and 112x hybrid zoom for ultra-sharp long-range inspection and large-scale mapping. - ✔
1800m Laser Rangefinder: Accuracy ±(0.2 + 0.0015×D)m, ideal for terrain surveying, stockpile volume calculation, and precise target positioning. - ✔
5-Directional Oblique Photography: Captures 5 angles in one flight to boost efficiency and accuracy for 3D modeling and orthomosaic mapping.
AI-Powered Intelligent Surveying
- ✔
One-Tap 3D Modeling: Fully compatible with DJI Terra to auto-generate 3D models, orthomosaics, and point cloud data. - ✔
Smart Target Detection: Automatically identifies buildings, vehicles, and infrastructure with third-party algorithm support. - ✔
Collaborative Workflow: Syncs with DJI Sky 2 for multi-drone coordination and streamlined operations. - ✔
Centimeter-Level RTK: Multi-system GNSS for professional-grade mapping accuracy.
Reliable Flight Performance
- ✔
49-Min Max Flight Time: 46 mins with low-noise props; covers up to 2.8 km² per mapping mission. - ✔
O4 Enterprise Transmission: 25km range, 8-antenna system, 20MB/s download for stable urban & complex terrain links. - ✔
360° Obstacle Avoidance: 6 low-light fisheye sensors for safe night & construction site flights. - ✔
Anti-GNSS Interference: Vision-assisted positioning ensures stable return-to-home even without satellite signals.
Application Scenarios
- •
Public Safety: Bridge inspection, urban planning, disaster assessment, reconstruction mapping - •
Construction & Engineering: Site monitoring, quality inspection, as-built data collection - •
Mining & Quarrying: Topographic survey, slope monitoring, volume calculation, haul road inspection - •
Power & Energy: Transmission line patrol, substation mapping, wind & solar farm layout - •
Forestry & Environment: Reservoir patrol, forest inventory, land reclamation, eco-monitoring
Technical Specifications
Takeoff Weight: 1219g (Standard) / 1229g (Low-Noise Propellers)
Folded Dimensions: 260.6×113.7×138.4mm
Max Flight Speed: 21m/s (sea level, no wind)
Wind Resistance: 12m/s
Operating Temp: -10°C to 40°C (14°F to 104°F)
GNSS: GPS + Galileo + BeiDou + GLONASS, RTK supported
Camera System: 20MP 4/3 CMOS + 48MP medium tele + 48MP tele
Zoom: 7x optical, 112x hybrid
Laser Rangefinder: Up to 1800m
Obstacle Avoidance: 360° with 6 low-light fisheye sensors
Flight Time: Up to 49 minutes
Transmission: O4 Enterprise, 25km range
Optional Accessories
- • DJI D-RTK 3 Multi-Functional Base Station
- • Low-Noise Propeller Set
- • Real-Time Voice Amplifier
- • 4G Signal Booster Module
- • High-Capacity Intelligent Battery
- • U3 High-Speed MicroSD Card (128GB / 256GB)
